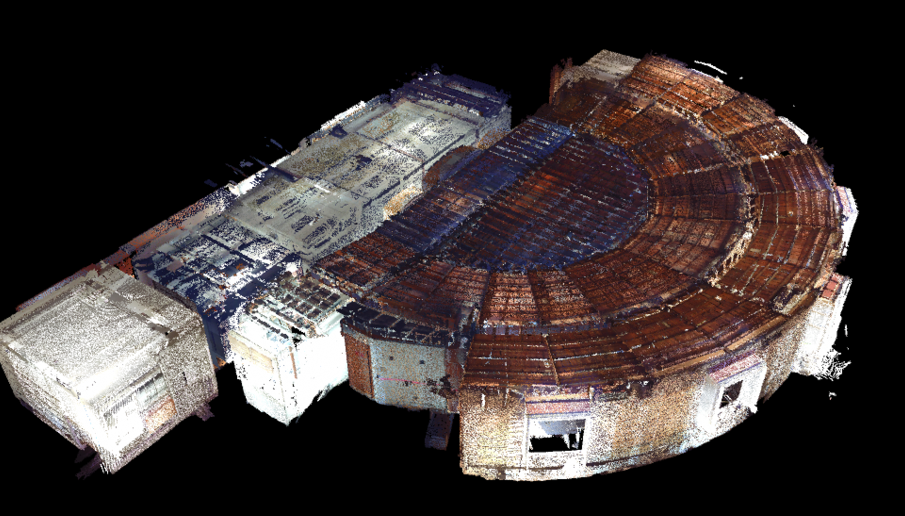

3D Laser Scanning and Point Cloud Generation

With a new Faro Focus X330 laser scanner, we are capable of quickly capturing and documenting existing conditions with incredible speed and accuracy.  Utilize our services to quickly and cost effectively obtain accurate 3D point clouds for:

  • Existing structures including beams, columns, floor slabs and bar joist webbing
  • Existing MEP systems
  • Verification of new construction with contract documents
  • Documentation of installations prior to being concealed (below grade installations, in-slab conduits, post tension strands...)
  • As-Built documentation

We would be happy to give a you a short in person or virtual presentation to show you exactly what is possible with laser scanning technology.  You will not be disappointed!!

For more information on the Faro Focus X330, please click here.
