HVAC Piping


We have extensive experience modeling and coordinating HVAC piping and the associated connected equipment.  Our modeling services include, but are not limited to:

  • Layout and detailing of mechanical rooms with all HVAC equipment (pumps, heat exchangers, expansion tanks, etc)
  • Layout and detailing of concrete equipment pads
  • Layout and detailing of penetration locations

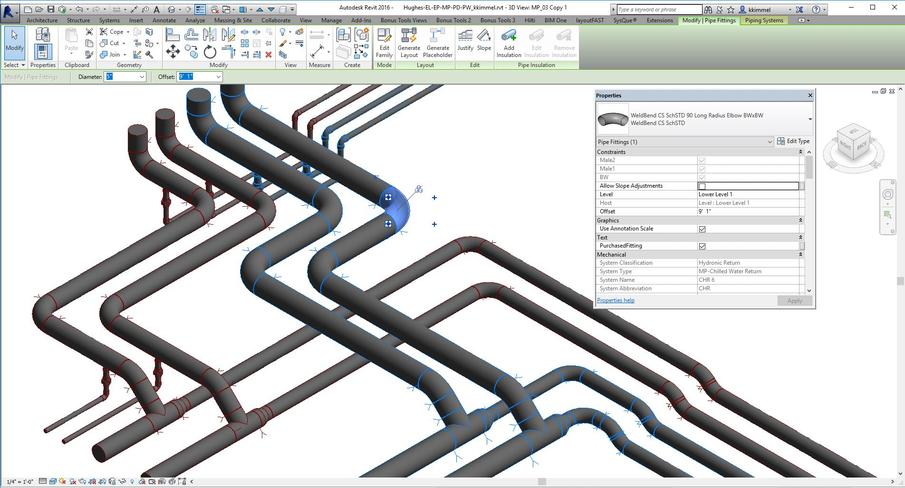

  • Routing and coordination of piping runs using manufacturer specific content
  • Detailing of hangers and trapeze rack assemblies
  • Complete and clearly annotated installation drawings
  • Complete and accurate bill of materials for all work modeled in our scope.


Please feel free to contact us for more detailed samples.
